Supply air grille for wall installation made by anodized aluminium. With two rows of adjustable blades, the front are parallel to the first mentioned dimension. Electrostatic paint in RAL color is possible. For use in heating or cooling cases.
Also is available in the following executions:

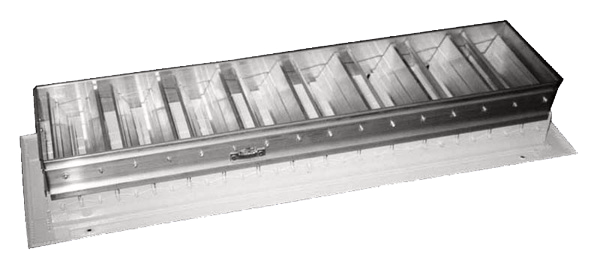

- T2P-D: With aluminium made, multiple leaf, air volume control damper with simultaneously opposite rotated blades.
- T2P-E: Accessible.
- T2P-FA: With air filter.
- T2P-D-E: Accessible and with aluminium made, multiple leaf, air volume control damper with simultaneously opposite rotated blades.
- T2P-D-FA: With air filter and aluminium made, multiple leaf, air volume control damper with simultaneously opposite rotated blades.

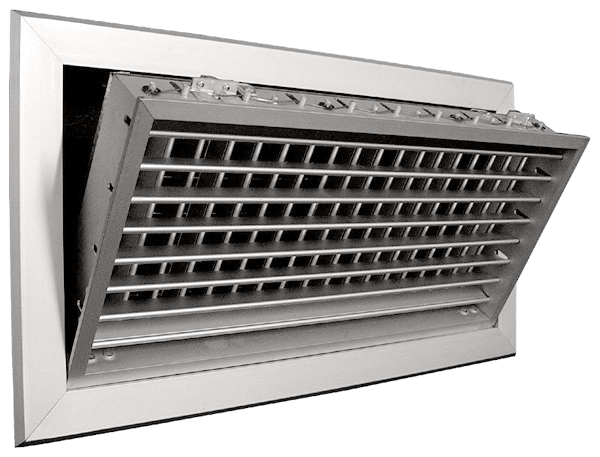

- T2P-E-FA: Accessible, with air filter.
- T2P-D-E-FA: Accessible, with air filter and aluminium made, multiple leaf, air volume control damper with simultaneously opposite rotated blades.
- T2P-AUTH: With blades in subframe rotated automatically by mechanism according to the supply air temperature. This way changes the air direction. Maximum dimension 600X300mm.
- T2P-ON/OFF-220V: With blades in subframe rotated by electric actuator on/off 220V. This way changes the air direction. Maximum dimension 600X300mm.
- T2P-ANALOGUE-24V: With blades in subframe rotated by electric actuator analogue 24V. This way changes the air direction. Maximum dimension 600X300mm.
- T2P-IN304: Made by stainless steel 304. Maximum dimension 1200X1200mm. For width more than 600 mm there is a 25mm wide brace in the middle, the blades are divided in 2pcs.

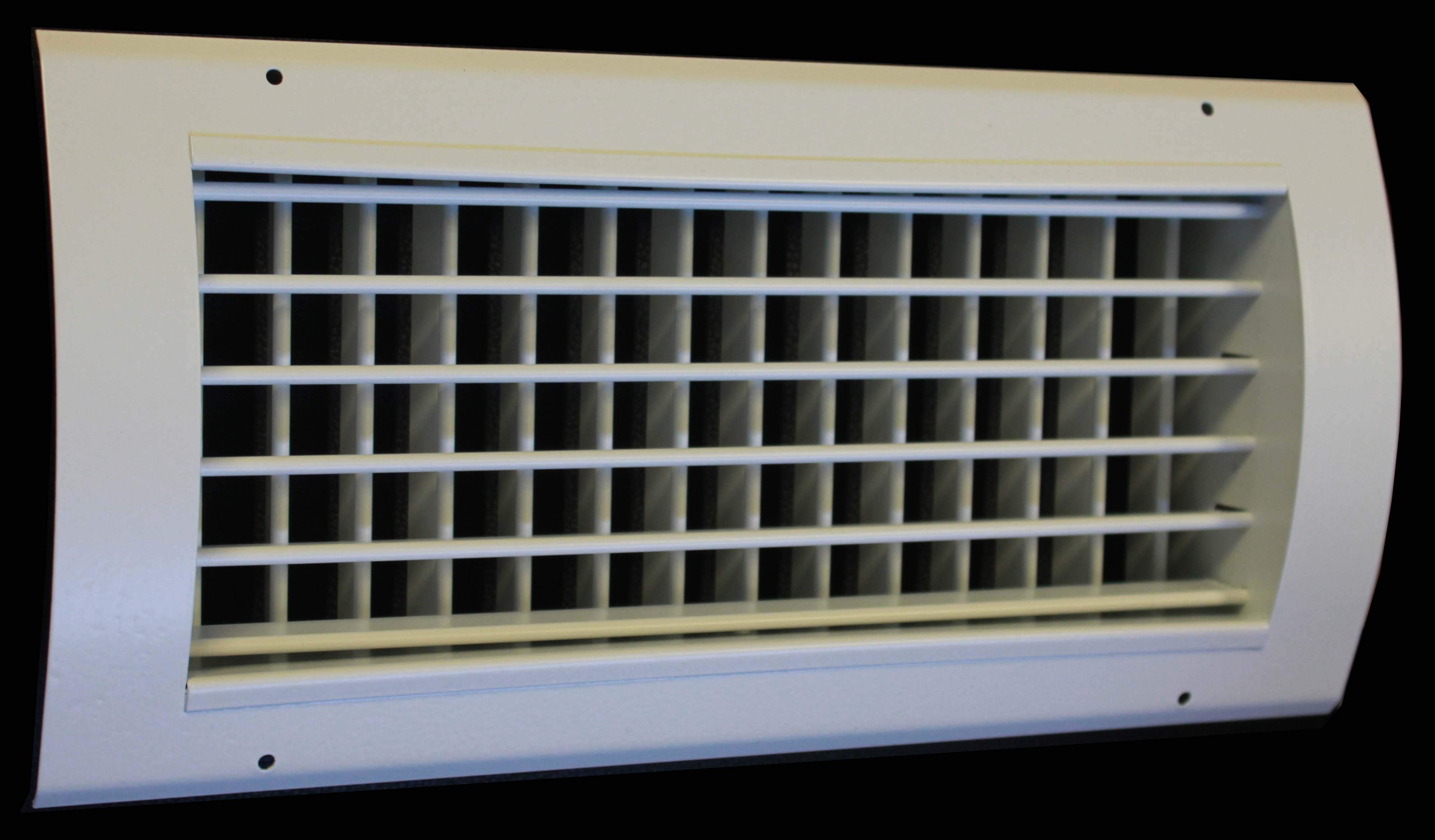

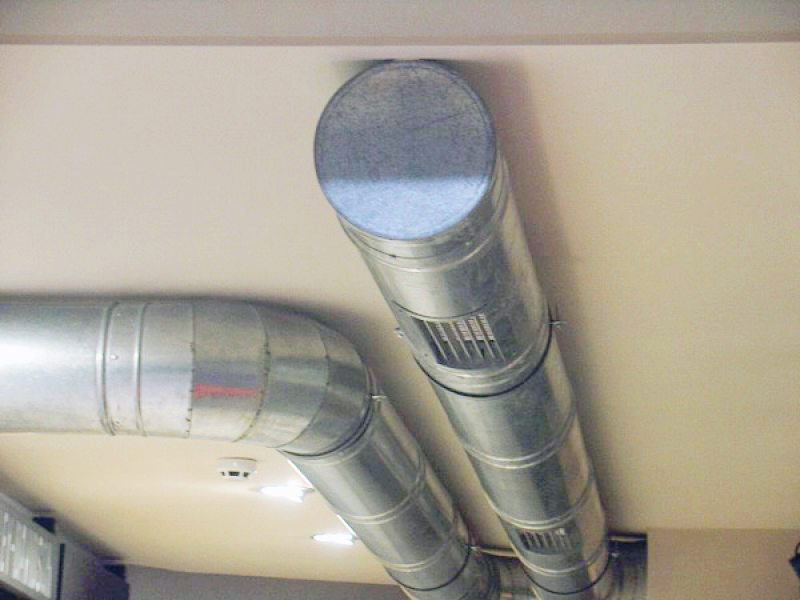

- Τ2P-SR: For direct installation in the side of round air duct. With galvanised frame.
- Τ2P-SR-D: For direct installation in the side of round air duct and aluminium made, multiple leaf, air volume control damper with simultaneously opposite rotated blades. With galvanised frame.
- Τ2P-SR-DΚ: For direct installation in the side of round air duct and flap type damper. With galvanised frame.
The types T2P/T2P-D/T2P-FA/T2P-D-FA is possible to be installed in metal plate (-SPQ) with external dimensions 595X595mm. In this case the plate and the diffuser are painted electrostatically in RAL color. This is possible only for the nominal diffuser dimensions 100X100, 125X125, 150Χ150, 200Χ200, 250Χ250, 300Χ300, 350Χ350, 400Χ400, 450Χ450 and 500Χ500.
